Import an object grid to an SCT
Use this procedure to import an object grid into a new or existing SCT. This procedure allows you to easily create a new SCT object grid using a similar one as a basis. After importing the object grid, you can modify the layout and assigned objects and slot lists, as necessary.
Note:  Before using this procedure, you must export an existing object grid to an XML file.
Note:  If you import to an existing SCT, the contents of the existing object grid are replaced by the imported configuration.
1. Open a new or existing SCT.

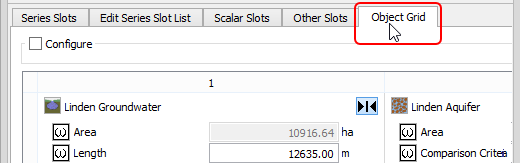

2. Go to the Object Grid tab.
3. Right-click any cell in the object grid and select Import Configuration in the shortcut menu.
The Windows File Chooser opens.
4. In the File Chooser, navigate to the location where the exported SCT is saved, and select the XML file.
Note:  If the file you select is not a valid object grid, the import will fail with an error message.
5. Select Open.

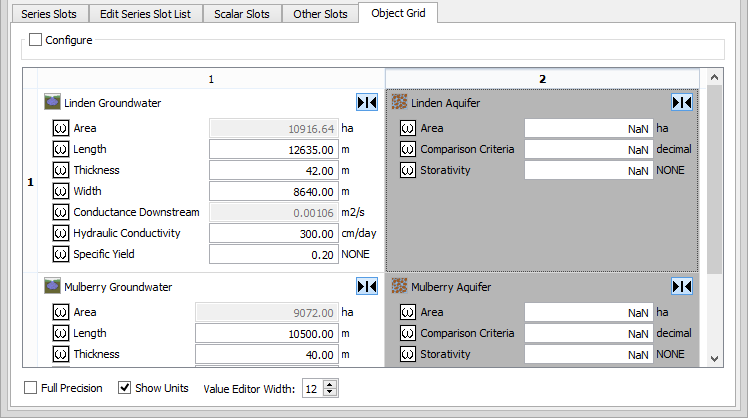

The imported configuration, including the assigned objects and slot lists, is loaded into the SCT, overwriting any existing configuration.
Related topics
Revised: 01/11/2023
