RDF Viewer
The first version of a new RDF Viewer was created to graphically display results from an MRM run that uses RDF output options. The RDF Viewer is accessible from the MRM run control dialog and displays charts of the trace data contained in a single RDF file, one chart per slot, with the data for each run (trace) plotted. A sample is shown in Figure 3.4. For more information see Ensemble Data Tool in Solution Approaches.

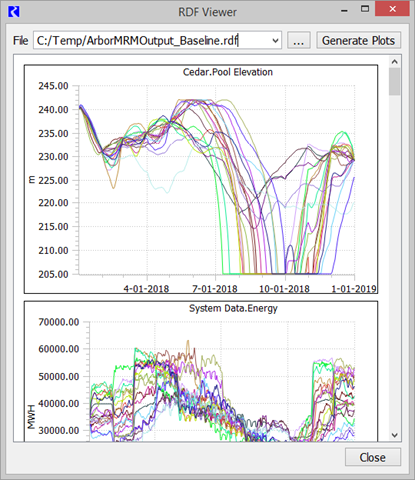

Figure 3.4  RDF Viewer Sample
