Workspace

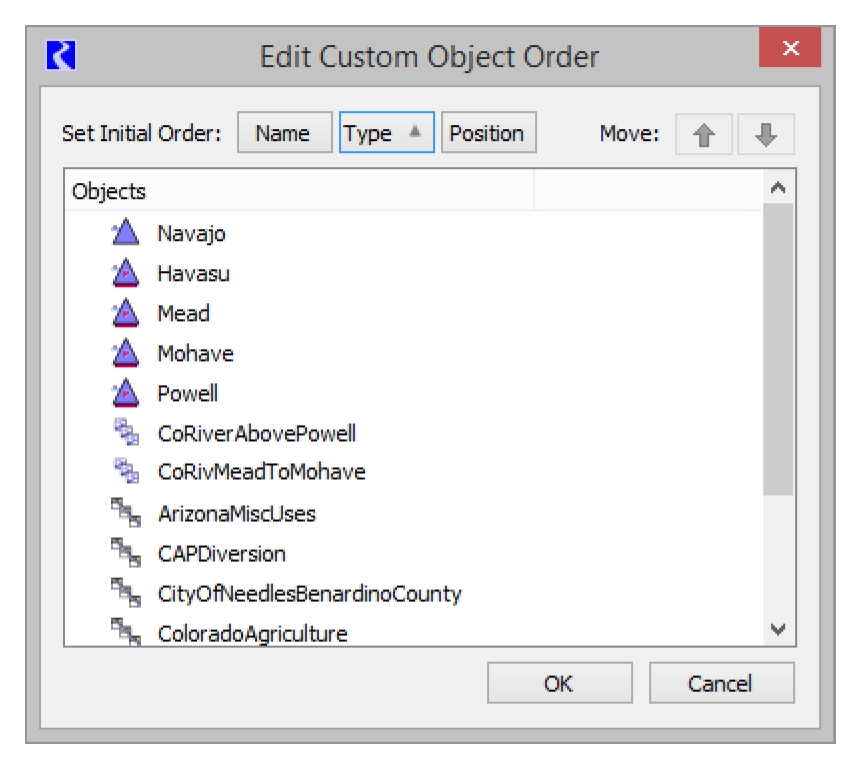

Custom Object Order Dialog
A new dialog was created to provide a mechanism for reordering simulation objects using click and drag, sort-by buttons, and up and down arrows. This is accessed from the workspace Simulation Object List using the Sort Edit Custom Order option.
For more information, see Simulation Object List in User Interface.

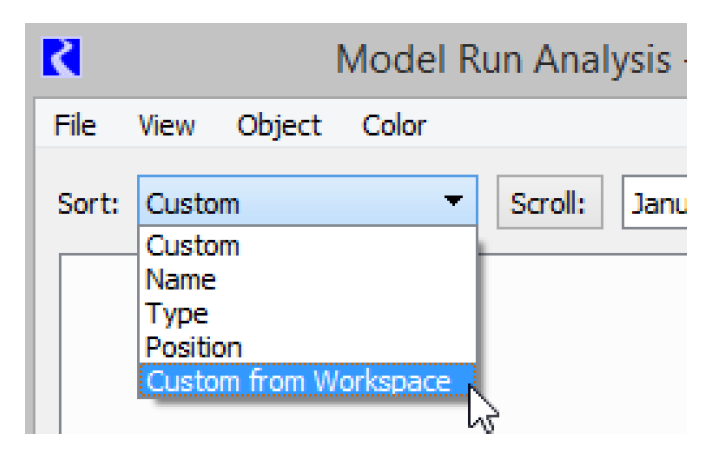

The Model Run Analysis and workspace Object Coordinates dialog were enhanced to allow you to use the workspace custom order in those dialogs too.

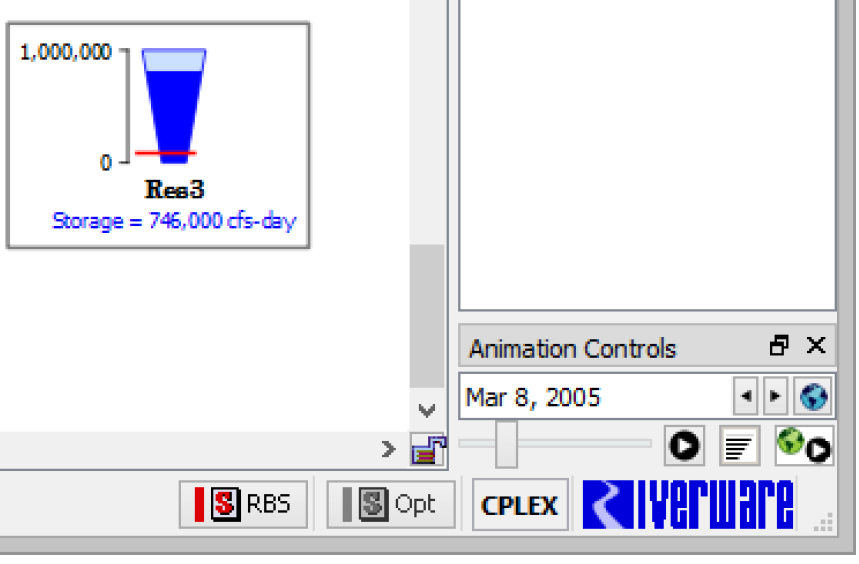

Output Canvas Items Shown on Workspace
Output Canvas Teacups, Charts, and Text can now be shown on the Simulation and Geospatial workspace views as described Teacups / Charts / Text shown on workspace.
As part of this work, the datetime spinner and animation controls were added to the dockable panel below the object list. Use this to advance the canvas items through time.
Revised: 07/05/2022
