SCT
Color Alerts / Conditional Formatting

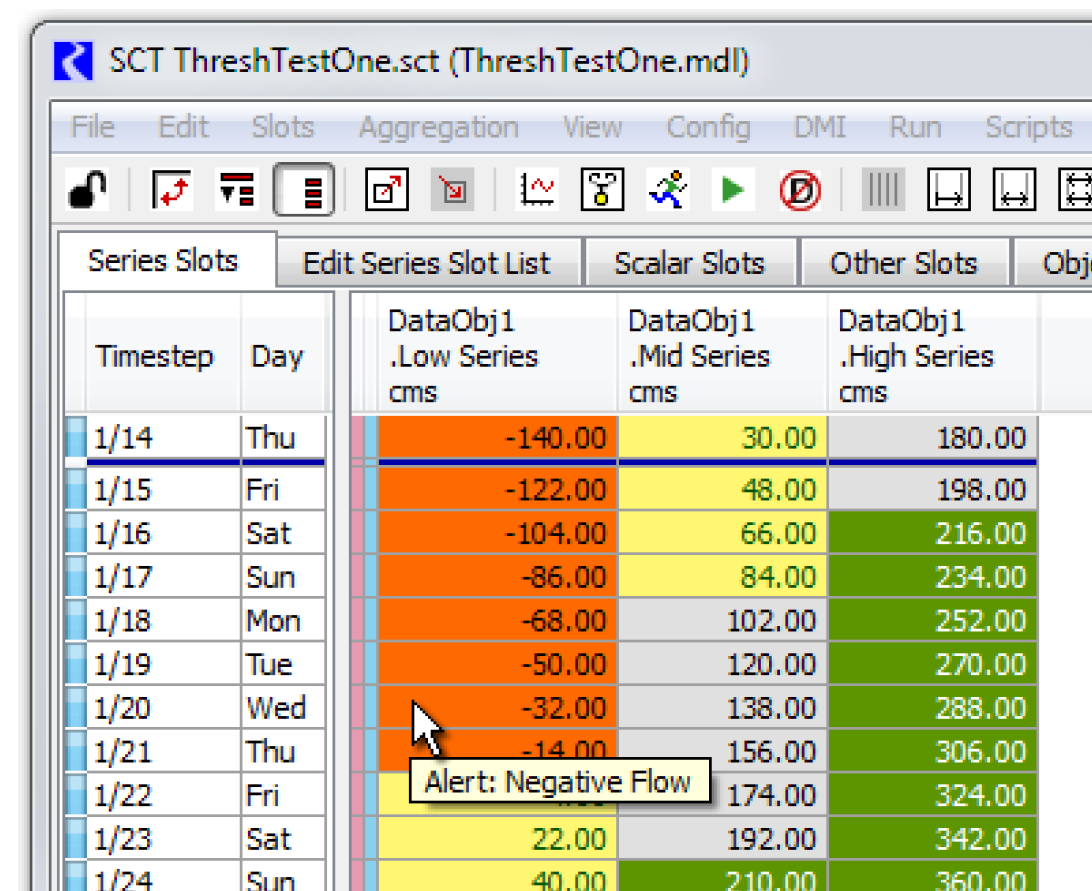

The System Control Table (SCT) was enhanced to support coloring of individual cells based on the numeric value compared to user defined intervals. The set of value intervals and the associated cell colors can be specified individually for each series slot in the SCT. Each interval can be associated with a custom color specification (a foreground/background color pair) or the default color indicating flag value. Following is a sample screenshot showing four different color definitions.
Revised: 07/05/2022
