Change multiple slot labels
Use this procedure to set the labels for many slots at once.
Note:  This operation changes both the row and column labels.
1. Go to the Edit Series Slot List tab. Alternatively, press Alt+Shft+S.
2. Select the slots you want to change, then right-click.

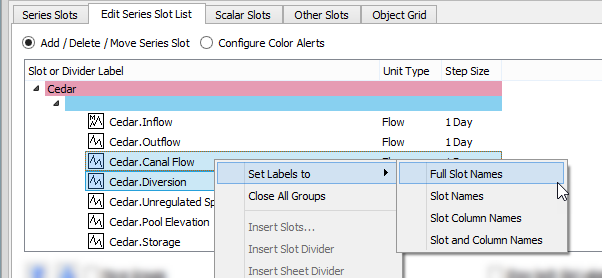

3. In the shortcut menu, select Set Labels to, then select one of the following options:
– Full Slot Names—change the label to the default Object.Slot name; for example, “Mead.Inflow”.
– Slot Names—change the label to just the slot name. For example, “Inflow”.
– Slot Column Names—for AggSeries and other multi-column slots, use the column label; for example, “Rice”.
– Slot and Column Names—for AggSeries and other multi-column slots, use the slot and column label; for example, “Evapotranspiration Rate by Crop.Rice”.
The labels are updated according to your selection.
4. Select Accept to accept the updates.
The Series Slot tab opens with the updated slot labels.
