Environment Variables in File Specification
The diagnostic output file specification can now use environment variables. Environment variables are specified by the “$” and the delimiters, () or {}. For example:
$(MODEL_DIR)/temp/model.diag or ${MODEL_DIR}/temp/model.diag
Show in Popup Window

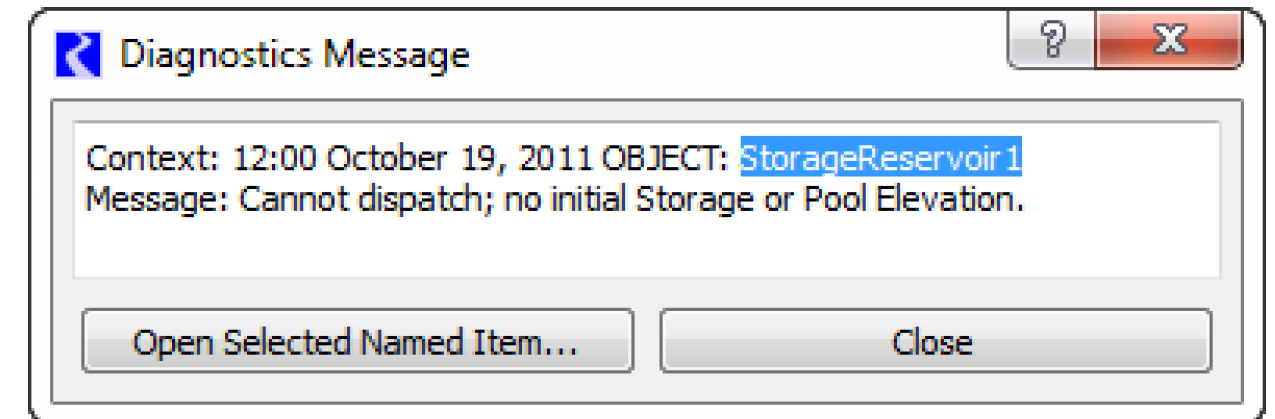

The diagnostics output window often contains very long lines of text. If you wish to see a message text in a more concise word-wrapped window, use the right-click Show Message in Popup Window. A dialog will open which shows the message, including the context information, wrapped to multiple lines.
Also, when you select text that is the name of an object, account or slot, the button Open Selected Named Item... button becomes enabled. Select the button to open the appropriate dialog for that object, account or slot.
Revised: 08/02/2021
